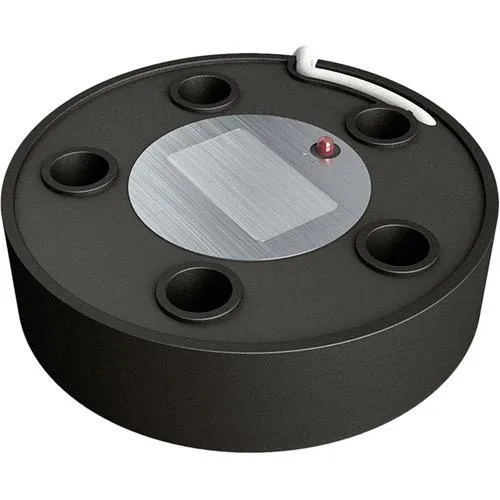

The ultrasonic level sensor, SENSORA is contactless and will measure the fluid level in any shape of tank. It is suitable for use with: petrol, diesel fuel, drinking water, black and grey waste water. After installation, the sensor can be calibrated very easily with the aid of a LED and a calibration wire; no other equipment is required. The sensor may be installed in any shape of tank, regardless of its dimensions, but with a maximum depth of 120 cm. When fitting an ultrasonic sensor to a VETUS fuel tank filler kit type FTKIT, adaptor SENSORSR must also be ordered. The sensor may be connected to all standard VETUS analogue level indicators and also to the VETUS waste water control panel (WWCP). SENSORA and SENSORB are not adviced for use with metal tanks.

Specifications

Voltage: 12 and 24 Volt D.C.

Current consumption: 35 mA

Interface: Analogue

Tank depth: 120 cm

Accuracy : / - 5%

Temperature range: - 20 to 70°C

Flange: SAE, 5 holes

Dimensions: Ø 77 x 23 mm
